marine alumium profile
6061 6082 Marine aluminum extrusions

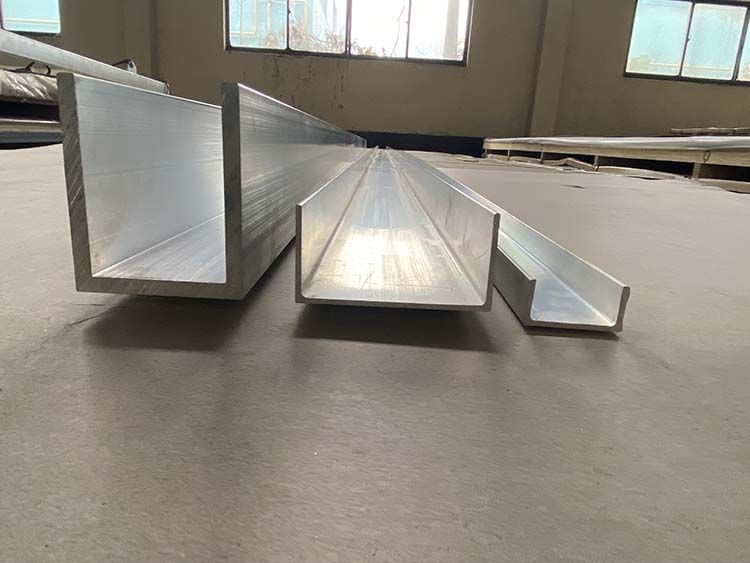

Although pure aluminum has extremely high corrosion resistance, it still faces severe challenges in salt water, and its strength is not enough to meet the bearing capacity of ships. Compared with pure aluminum, marine aluminum is usually alloyed with other metals (such as magnesium) to enhance its corrosion resistance. Marine aluminum alloy profiles are mainly used for ship structures and accessories. Common profiles include angle steel, square tubes, round tubes, etc.
6061 aluminum is a precipitation hardening alloy containing magnesium and silicon, used to manufacture marine accessories and hardware. This marine aluminum alloy has excellent weldability and good mechanical properties and is one of the most commonly used general-purpose alloys.
6082 aluminum alloy is a heat-treatable alloy with good formability, weldability, machinability and corrosion resistance. It has medium strength and can still maintain good operability after annealing. It is mainly used in mechanical structures, including bars, plates, pipes and profiles.
Chemical composition
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others (each) | Other total | Al |
6061 | 0.40-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.05 | 0.15 | Remainder |
Alloy | Mn | Fe | Mg | Si | Zn | Cu | Ti | Cr | Others (each) | Other total | Al |
6082 | 0.40-1.0 | 0.0-0.5 | 0.60-1.2 | 0.70-1.3 | 0.0-0.20 | 0.0-0.10 | 0.0-0.10 | 0.0-0.25 | 0.0-0.05 | 0.0-0.15 | Remainder |
Aluminum 6082 and 6061 material properties
Alloy | Tensile strength(25℃) MPa | Yield strength (25℃) MPa | Elongation(HB) | Hardness 1.6mm |
6061 t6/t651 | 310 | 279 | 12 | 95 |
6061 O | 124 | 55 | 25 | 30 |
6061 t4/t451 | 241 | 145 | 22 | 65 |
Alloy/temper | Tensile strength | Elongation(%) |
6082-O | ≤155 | ≥18 |
6082-T4 | ≥205 | ≥15 |
6082-T6 | ≥310 | ≥10 |
Using forms of 6061 and 6082 alloy
6082 aluminum: aluminum sheet, aluminum rod, aluminum tubes
6061 aluminum: aluminum checker plate, aluminum sheet, square rod, angle, aluminum tube.
Specifications
Alloy | Thickness(mm) | Length(mm) | Width(mm) |
6082 aluminum sheet | 0.2-200 | 30-2500 | 500-13000 |
Alloy | Tempers | Thickness(mm) | Length(mm) | Width(mm) |
6061 aluminum sheet | O、T4、T6、T651、F | 0.3-500 | 500-16000 | 100-2800 |
6082vs6061
6082 has versatility that makes it an alternative to 6061. 6061 and 6082 are comparable to each other because both have unique properties. Heat treatment and alloying elements have a great influence on their mechanical properties and applications. The properties of 6082 aluminum make it a rust-proof material with high shear strength. 6082 performs just as well as 6061, also with good strength and rust resistance. 6061 has good formability and welding speed.
Why choose Haomei Aluminum
Our marine aluminum plates are of rich alloys, covering 5052, 5083, 5086, 6061, 5059, 6063, 5456, 6082, 5383, etc. All of them have passed the certification of DNV, ABS, NK, CCS,RINA and LR. They have been used for a variety of ships such as yachts, fishing boats, assault boat, patrol boat, and sightseeing boat. In addition, they are used in the different parts of boats such as hull, deck,keel, chimney,etc.
We deliver quality metal with exceptional service both domestically and internationally and have placed product in 100 counties and regions, including Japan, Korea, North America, Australia, The Bahamas, Brazil, The Caribbean Islands, Chile, Columbia, France, Turkey, Italy, Mexico, New Zealand, Panama, Peru,etc.
