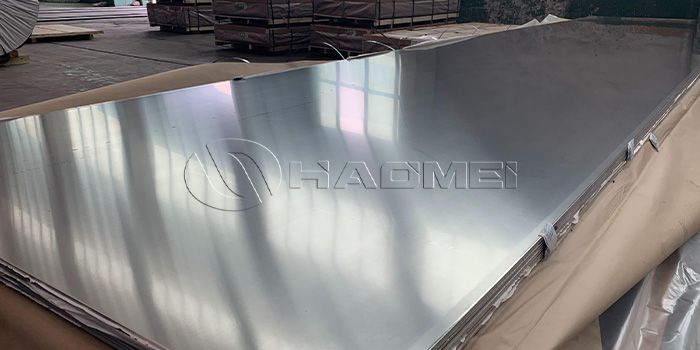

5059 aluminum plate
Haomei 5059 marine grade aluminum sheets for sale are a non-heat-treatable reinforced alloy with high strength, good toughness and reproducibility. Due to the difference in chemical composition, the functions of 5059 alloy are better than that of 5083 alloy. However, because of its high magnesium content, its pressure processing and forming functions are slightly inferior to those of 5083 alloy. In general, 5059 has better mechanical properties and corrosion resistance than 5083 marine grade aluminium, and can be used as a substitute for 5083.
Specifications of 5059 marine grade aluminum sheets for sale
Alloy | Temper | Thickness (mm) | Width (mm) |
5059 | O/H111/H112/H116/H321 | 3-10 | ≤2600 |
5059 | H112 | 10-50 | ≤3600 |
Chemical composition of marine 5059 aluminum plate sheet
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Standard |
5059 | ≤0.45 | ≤0.5 | ≤0.25 | 0.6-1.2 | 5.0-6.0 | ≤0.25 | 0.4-0.9 | ≤0.2 | 0.05-0.25 | EN573 ASTM B928 |
Mechanical properties of marine 5059 aluminium sheet plate
Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2 (Mpa) | Elongation A (%) | Exfoliation corrosion mg/cm2 | Intergranular corrosion | Standard |
5059 | O/H111 | ≥330 | ≥160 | ≥24 | --- | --- | EN/ ASTM |
5059 | H112 | ≥330 | ≥160 | ≥20 | --- | --- | |
5059 | H116/H321 | ≥370 | ≥270 | ≥10 | ≤PB | ≤15 |
Applications of 5059 aluminum plates in marine building
5059 aluminum plate belongs to the 5 series AL-Mg alloy, with low density and high tensile strength, which is higher than some low-carbon mild steel. It has strong resistance to seawater and marine climate corrosion, and has good welding performance. It is often used in the ocean. Engineering, ships and cruise ships of tens to hundreds of tons can use this alloy. Its main application areas include ships, yachts, cruise ships, cargo ships, fishing boats, etc.
Price
The price of our 5059 marine grade aluminum sheets for sale fluctuates with the aluminum ingot price and our manufacturing cost. Welcome to send an inquiry!
