Aluminum Ribbed plate
What is aluminum ribbed plate

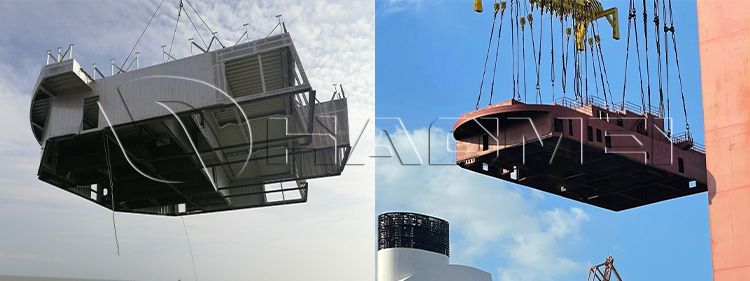

Aluminum deck, superstructure, the inner and outer wall panels are usually composed of aluminum alloy plates and aluminum alloy profiles of various shapes, which are welded into an integral composite plate structure by argon arc welding.
For small or medium-sized ships, due to the large amount of argon arc welding, the welded aluminum alloy composite plate structure will produce particularly obvious wave deformation and concave and convex deformation, and it is very difficult to correct these deformations of aluminum alloy, which affects the construction quality and appearance of the ship. In order to solve the strength problem, choosing the aluminum ribbed plate is a better choice.
Stiffened aluminum sheet specifications

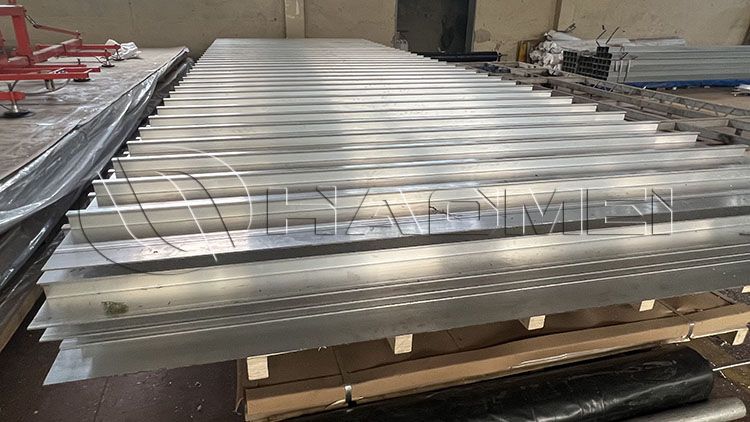

Haomei Aluminum mainly provides three kinds of ribbed aluminum plate: single stiffener panel, double stiffened panel, multi stiffened panel,etc. It will saves a lot of welding work and shorten the ship construction period.
Single stiffener panel | |||||||||
T1 | T2 | W | H | L | |||||
(mm) | (mm) | (mm) | (mm) | (mm) | |||||
2.8 | 1.8 | 200 | 60 | 12500 | |||||
4 | 3 | 250 | 43 | 12500 | |||||
300 | 43 | ||||||||
400 | 43 | ||||||||
5 | 4 | 250 | 64 | 12500 | |||||
300 | 54 | ||||||||
6 | 5 | 250 | 55 | 12500 | |||||
300 | 55 | ||||||||
7 | 6 | 250 | 56 | 12500 | |||||
300 | 66 | ||||||||
8 | 7 | 250 | 57 | 12500 | |||||
300 | 67 | ||||||||
9 | 8 | 250 | 68 | 12500 | |||||
300 | 68 | ||||||||
9.6 | 9 | 250 | 59 | 12500 | |||||
Double-stiffened panel | |||||||||
T1 | T2 | W | H | P | L | ||||
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||
3 | 1.9 | 212 | 32.5 | 106 | 12500 | ||||
2 | 270 | 37 | 135 | ||||||
3.5 | 2.5 | 270 | 37.5 | 135 | 12500 | ||||
4 | 3 | 252 | 33 | 126 | 12500 | ||||
320 | 38 | 160 | |||||||
Multi stiffened panel | |||||
T1 | T2 | W | H | P | L |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
3.5 | 2.5 | 345 | 37.5 | 115 | 12500 |
Why Choose Haomei Aluminum
1. Haomei Aluminum is not only the aluminum ribbed plate supplier, but also the supplier of all main materials required for aluminum alloy shipbuilding, covering marine grade aluminum sheet, aluminum profile, aluminum welding wire. The ribbed plate mold library has exceeded 60 sets, and the marine aluminum alloy profile mold library has exceeded 300 sets.
2. Haomei Aluminum has passed ISO quality, environment, occupational health and safety management system certification and obtained CCS, BV, LR, DNV-GL welding process and product recognition. The product performance has reached the international leading level, becoming a professional company with leading product quality and production capacity scale of wide stiffened aluminum sheet.
3. Haomei Aluminum’s marine aluminum ribbed sheets have been exported to more than ten countries including Australia, India, Singapore, Pakistan, etc.
