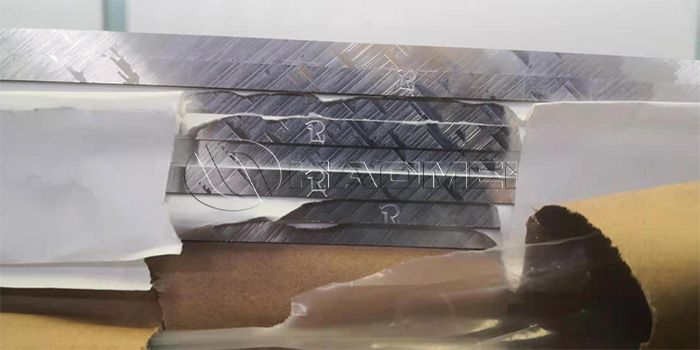

5086 aluminum plate
Haomei 5086 aluminum plate for sale is a typical marine aluminum alloy plate with applications in shipbuilding. It has high corrosion resistance, good weldability and medium strength, used in ship welding parts, the main structure of a hull, etc. Haomei is among leading 5086 aluminum plate suppliers in China.
Specifications of Haomei marine grade aluminum 5086 sheet plate
Alloy | Temper | Thickness (mm) | Width (mm) |
5086 | O/H111/H112/H116/H321 | 3-10 | ≤2600 |
5086 | O/H111/H112/H116/H321 | 10-50 | ≤3600 |
Chemical composition of 5086 aluminum plate for sale
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Zr | Standard |
5086 | ≤0.4 | ≤0.5 | ≤0.1 | 0.2-0.7 | 3.5-4.5 | 0.05-0.25 | ≤0.25 | ≤0.15 | - | EN573 ASTM B928 |
Mechanical properties of 5086 aluminium alloy
Alloy | Temper | Tensile strength Rm(Mpa) | Yield strength Rp0.2 (Mpa) | Elongation A (%) | Exfoliation corrosion mg/cm2 | Intergranular corrosion | Standard |
5086 | O/H111 | 240-305 | ≥95 | ≥16 | --- | --- | EN485 ASTM B928 |
5086 | H112 | ≥250 | ≥125 | ≥8 | --- | --- | |
5086 | H116 | ≥275 | ≥195 | ≥10 | ≤PB | ≤15 |
Applications of marine grade aluminum 5086 sheet plate
5086 aluminum plate is used for the bottom outer plates and side panels of a ship, which can better resist the erosion of sea water and prolong the life of the ship. 5086 marine grade aluminum plates are mainly used for ships, decks, etc.
Price
5086 aluminum plate suppliers provide prices based on the aluminum ingot price and their manufacturing cost. Welcome to contact us anytime!
